ELHART TRE.V60 series temperature sensors are designed for measuring air temperature in ventilation system ducts.

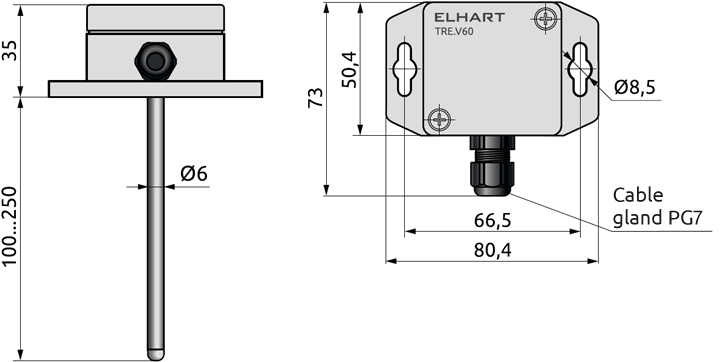

TRE.V60 sensors are manufactured with Pt100 and Pt1000 platinum sensing elements and accuracy class B according to GOST 6651. The operating temperature range is from -40 to +80 °C. The immersion length of the measuring probe is specified upon ordering and can be manufactured with a length from 100 to 250 mm.

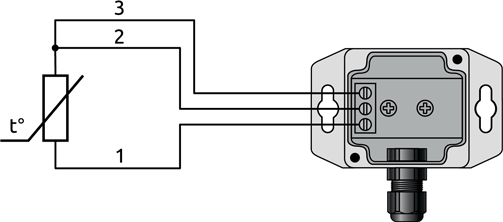

Cable is inserted into the sensor housing through the PG7 cable gland. The sensor has a screw terminal block for connecting wires.
| Parameter | Value |
|---|---|
| Sensor type | Pt100 (α=0.00385 °C -1) Pt1000 (α=0.00385 °C -1) (specified upon ordering) |
| Temperature measurement range | -40…+80 °C |
| Accuracy class | Class В - ±(0.30+0.005 . |t|) °C where |t| is the absolute temperature value |
| Thermal response time (63.2%) * | max 35 s |
| Electrical insulation resistance at 25 ±10 °С | min 100 MΩ |
| Measuring current * | max 1 mA (Pt100) max 0.3 mA (Pt1000) |
| Ingress Protection ** | IP65 |
| Outer cable diameter | 3.5…6 mm (PG7 cable gland) |
| Conductor cross-section | 3-wire |
| Wire cross section | max 1.5 mm2 |
| Protective sheath material | AISI 321 stainless steel (12Х18Н10Т) |
| Minimum immersion length | 60 mm |
| Housing Material | ABS plastic |
| Relative air humidity | max 95% (without condensation) |
| Mean time between failures (MTBF) | min 40,000 hours |
| Service life | 10 years |
* — according to GOST 6651.
** — according to GOST 14254.
