ELHART TRE.V52 series temperature sensors are designed for measuring ambient air temperature in individual heating substations, meteorological stations, general ventilation systems, etc.
TRE.V52 sensors are manufactured with Pt100 or Pt1000 platinum sensing elements and accuracy class B according to GOST 6651. The operating temperature range is from -40 to +80 °C.

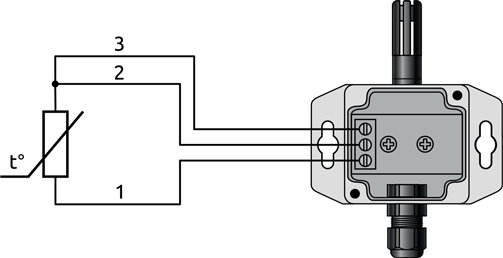

The measuring wires are connected to the sensor using a screw terminal connector according to a 3-wire connection scheme.
| Parameter | Value |
|---|---|
| Sensor type | Pt100 (α=0.00385 °C -1) Pt1000 (α=0.00385 °C -1) (specified upon ordering) |
| Temperature measurement range | -40…+80 °C |
| Accuracy class | Class В - ±(0.30+0.005 . |t|) °C where |t| is the absolute temperature value |
| Thermal response time (63.2%) * | max 30 s |
| Electrical insulation resistance at 25 ±10 °С | min 100 MΩ |
| Measuring current * | max 1 mA (Pt100) max 0.3 mA (Pt1000) |
| Ingress Protection ** | IP65 |
| Outer cable diameter | 3.5...6 mm (PG7 cable gland) |
| Wiring configuration | 3-wire |
| Conductor cross-section | max 1.5 mm2 |
| Sheath material | brass |
| Housing Material | ABS plastic |
| Relative air humidity | max 95% (without condensation) |
| Mean time between failures (MTBF) | min 40,000 hours |
| Service life | 10 years |
* — according to GOST 6651.
** — according to GOST 14254.
