ELHART TRE.V50 series temperature sensors are resistance temperature detectors (RTDs) designed for measuring ambient air temperature in heating, ventilation, and air conditioning (HVAC) systems.
TRE.V50 sensors are manufactured with Pt100 or Pt1000 platinum sensing elements and accuracy class B according to GOST 6651. The operating temperature ranges from -40 to +80 °C.

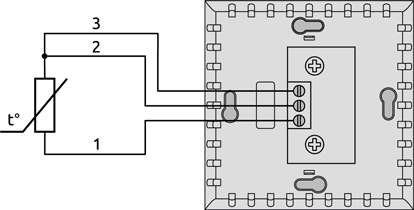

The measuring wires are connected to the sensor using a screw terminal connector according to a three-wire connection scheme.
| Parameter | Value |
|---|---|
| Sensor type | Pt100 (α=0.00385 °C -1) Pt1000 (α=0.00385 °C -1) (specified upon ordering) |
| Temperature measurement range | -40…+80 °C |
| Accuracy class | Class В - ±(0.30+0.005 . |t|) °C where |t| is the absolute temperature value |
| Thermal response time (63.2%) * | max 10 s |
| Electrical insulation resistance at 25 ±10 °С | min 100 MΩ |
| Measuring current * | max 1 mA (Pt100) max 0.3 mA (Pt1000) |
| Ingress Protection ** | IP20 |
| Wiring configuration | 3-wire |
| Conductor cross-section | max 1.5 mm2 |
| Housing Material | ABS plastic |
| Relative air humidity | max 95% (without condensation) |
| Mean time between failures (MTBF) | min 40,000 hours |
| Service life | 10 years |
* — according to GOST 6651.
** — according to GOST 14254.
