ELHART TRE.H20 series temperature sensors are designed for measuring the temperature of liquid, granular, and gaseous media non-aggressive to the sensor materials.

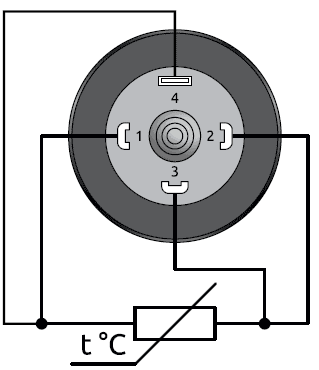

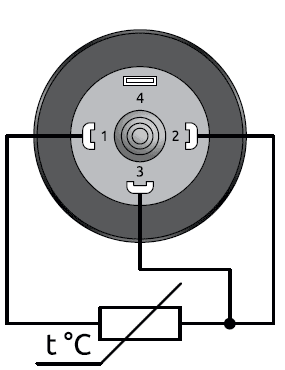

TRE.H20 RTDs are manufactured with Pt100 and Pt1000 platinum sensing elements of accuracy classes A and B according to GOST 6651. Wire connection is carried out via a quick-release electrical connector according to DIN 43650, providing fast and easy connection to measuring devices.
Process connection is performed by a fixed fitting with M20×1.5 or G1/2" thread. The sensors can be connected to the process directly or via a thermowell.
| Parameter | Value |
|---|---|
| Sensor type * (depends on the modification) | Pt100 (α=0.00385 °C -1) Pt1000 (α=0.00385 °C -1) |
| Temperature measurement range (at ambient temperature not exceeding +35 °C) |
-30...+150 ºC (Class А) -50...+150 ºC (Class В) |
| Maximum ambient temperature | +100 °С |

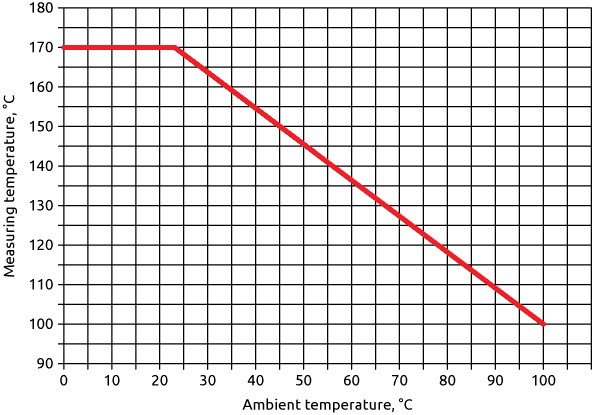

| Maximum operating medium temperature | see Dependence on ambient temperature |
| Accuracy class * (determined by modification) | Class A: ±(0.15+0.002 ·|t| ***) °C Class В: ±(0.30+0.005 ·|t| ***) °C |
| Thermal response time (63.2%) * | max 35 s |
| Minimum immersion length | 60 mm |
| Operating pressure | max 2.5 MPa |
| Electrical insulation resistance at 25 ±10 °С | min 100 MΩ |
| Measuring current * | max 1 mA (Pt100) max 0.3 mA (Pt1000) |
| Conductor cross-section | max 1.5 mm² |
| Ingress Protection ** | IP65 |
| Process connection (depends on the modification) |
male thread M20×1.5, G1/2″ |
| Immersion probe material | AISI 321 (12Х18Н10T) |
| Relative air humidity | max 90% |
| Mean time between failures (MTBF) | min 35,000 hours |
| Service life | 10 years |
* according to GOST 6651.
** according to GOST 14254.
*** where |t| is the absolute temperature value in °C.
| Parameter | Value |
|---|---|
| Nominal operating pressure | max 16 MPa |
| Maximum allowable operating temperature | determined by the thermowell material |
| Thermowell material | AISI 321 (12X18H10T) |
| Operating medium | any medium neutral to the thermowell material |

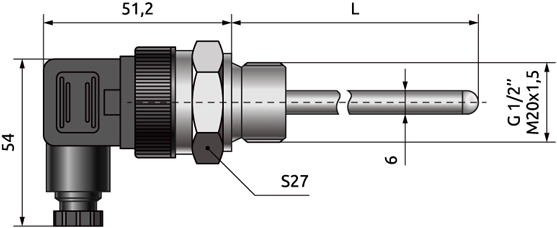

L can take values from 60 to 630 mm.
| Ordering code | Overall dimensions, mm | ||||
|---|---|---|---|---|---|
| A | B | L* | D | d | |

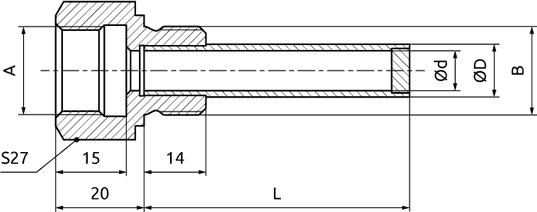

| PA.10-M20-D6-xxx | M20x1.5 | 60, 80, 100, 120, 160, 200, 250, 320, 400, 500 | 10 | 7 | |
| PA.10-G12-D6-xxx | G1/2″ | ||||
L* — immersion length of the sensor to be installed.
