TCE.C41 thermocouples are designed for measuring the surface temperature of solid bodies (metal plates, motor housings, machine components, etc.). The housing is ring-shaped, which allows the sensor to be securely fastened with a screw clamp (M6 screw).
Thermocouple types: J (Fe-CuNi), L (NiCr-CuNi), and K (NiCr-NiAl) according to GOST R 8.585-2001.
Standard modifications of TCE.C41 sensors are manufactured with a 2 m cable.
| Parameter | Value |
|---|---|
| Type | J / L / K (specified upon ordering) |
| Temperature measurement range | -40…+400 °C |
| Accuracy class | 2 |
| Thermal response time (63.2%) | max 20 s |
| Hot junction design according to housing | isolated |
| Electrical insulation resistance at 25 ±10 °С | min 100 MΩ |
| Ingress Protection | IP5X |
| Sheath material | tinned copper |
| Conductor insulation | glass yarn |
| Outer shield | stainless steel |
| Conductor cross-section | 2×0.2 mm² |
| Outer cable diameter | max 3 mm |
| Mean time between failures (MTBF) | min 35,000 hours |
| Service life | 10 years |

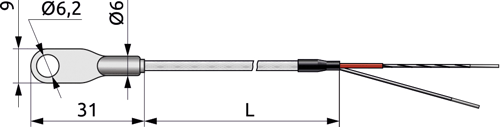

For standard modifications, cable length L is 2 m.
Other lengths are available on request.
