ELHART TCE.C34 thermocouples with bayonet connection are designed for measuring temperatures up to +400 °C in plastic injection molding or extrusion applications.
Thermocouple types: J (Fe-CuNi) — stock item, L (NiCr-CuNi), and K (NiCr-NiAl).
Standard modifications of TCE.C34 sensors are manufactured with a 1.5 m cable.
| Parameter | Value |
|---|---|
| Type | J / L / K (specified upon ordering) |
| Temperature measurement range | -40…+400 °C |
| Accuracy class | 2 |
| Thermal response time (63.2%) | max 20 s |
| Hot junction design according to housing | isolated |
| Electrical insulation resistance at 25 ±10 °С | min 100 MΩ |
| Ingress Protection | IP5X |
| Mounting adapter material | nickel-plated steel |
| Bayonet plug material | nickel-plated steel |
| Protective sheath material | AISI 304 stainless steel |
| Spring material | AISI 304 stainless steel |
| Conductor insulation | glass yarn |
| Outer shield | stainless steel |
| Conductor cross-section | 2×0.2 mm² |
| Outer cable diameter | max 3 mm |
| Mean time between failures (MTBF) | min 35,000 hours |
| Service life | 10 years |

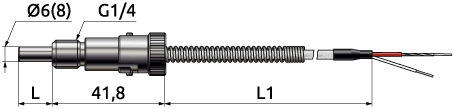

| Ordering code | Overall dimensions, mm | |
|---|---|---|
| L | L1 | |
| TCE.C34-J-2-G14-D8-L12-1,5m | 12 * | 1500 |
| TCE.C34-J-2-G14-D6-L30-1,5m | 30 | 1500 |
| TCE.C34-J-2-G14-D6-L30-2,5m | 30 | 2500 |
| TCE.C34-J-2-G14-D6-L30-3m | 30 | 3000 |
| TCE.C34-J-2-G14-D6-L100-1,5m | 100 | 1500 |
* - Protection sheath with length L=12 mm has a diameter of 8 mm. Other sheaths have a diameter of 6 mm.
