Pressure transmitter with analog output

Pressure transmitter with analog output

PTE5000C series pressure transmitters are designed to convert the pressure of liquids, steam, gases, and gas/steam mixtures into a standard current signal. These transmitters are used for gauge pressure measurement.

Applications: automatic pump control systems, measurement and monitoring systems, automatic pressure regulation in various industries (compressor equipment, hydraulic, agricultural and construction equipment, HVAC systems, chemical industry, etc.).

Modifications Where to buy?

Pressure transmitter PTE5000C-004-M20-C
PTE5000C-004-M20-C
  • Measuring range: 0…4 bar
  • Connecting thread: M20×1.5
  • Accuracy: 0.5%
Pressure transmitter PTE5000C-004-G1/2-C
PTE5000C-004-G1/2-C
  • Measuring range:0…4 bar
  • Connecting thread: G1/2
  • Accuracy: 0.5%
Pressure transmitter PTE5000C-004-G1/4-C
PTE5000C-004-G1/4-C
  • Measuring range:0…4 bar
  • Connecting thread: G1/4
  • Accuracy: 0.5%
Pressure transmitter PTE5000C-006-G1/2-C
PTE5000C-006-G1/2-C
  • Measuring range:0…6 bar
  • Connecting thread: G1/2
  • Accuracy: 0.5%
Pressure transmitter PTE5000C-006-G1/4-C
PTE5000C-006-G1/4-C
  • Measuring range:0…6 bar
  • Connecting thread: G1/4
  • Accuracy: 0.5%
Pressure transmitter PTE5000C-010-M20-C
PTE5000C-010-M20-C
  • Measuring range:0…10 bar
  • Connecting thread: M20×1.5
  • Accuracy: 0.5%
Pressure transmitter PTE5000C-010-G1/2-C
PTE5000C-010-G1/2-C
  • Measuring range:0…10 bar
  • Connecting thread: G1/2
  • Accuracy: 0.5%
Pressure transmitter PTE5000C-010-G1/4-C
PTE5000C-010-G1/4-C
  • Measuring range:0…10 bar
  • Connecting thread: G1/4
  • Accuracy: 0.5%
Pressure transmitter PTE5000C-016-M20-C
PTE5000C-016-M20-C
  • Measuring range:0…16 bar
  • Connecting thread: M20×1.5
  • Accuracy: 0.5%
Pressure transmitter PTE5000C-016-G1/2-C
PTE5000C-016-G1/2-C
  • Measuring range:0…16 bar
  • Connecting thread: G1/2
  • Accuracy: 0.5%
Pressure transmitter PTE5000C-016-G1/4-C
PTE5000C-016-G1/4-C
  • Measuring range:0…16 bar
  • Connecting thread: G1/4
  • Accuracy: 0.5%
Pressure transmitter PTE5000C-025-M20-C
PTE5000C-025-M20-C
  • Measuring range:0…25 bar
  • Connecting thread: M20×1.5
  • Accuracy: 0.5%
Pressure transmitter PTE5000C-025-G1/2-C
PTE5000C-025-G1/2-C
  • Measuring range:0…25 bar
  • Connecting thread: G1/2
  • Accuracy: 0.5%
Pressure transmitter PTE5000C-025-G1/4-C
PTE5000C-025-G1/4-C
  • Measuring range:0…25 bar
  • Connecting thread: G1/4
  • Accuracy: 0.5%
Pressure transmitter PTE5000C-20A0-G1/2-С
PTE5000C-20A0-G1/2-С
  • Measuring range:0…200 psi
  • Connecting thread: G1/2
  • Accuracy: 0.5%
Pressure transmitter PTE5000C-006-M20-C
PTE5000C-006-M20-C
  • Measuring range:0…6 bar
  • Connecting thread: M20×1.5
  • Accuracy: 0.5%
  • Technical characteristics of the ELHART PTE5000C pressure transmitter
    Parameter Value
    Pressure measuring range from 0 to 4...16 bar
    depends on ordering code
    Analog output signal 4...20 mA
    Accuracy ±0.5% FS
    Power supply voltage 12 VDC / 24 VDC
    Allowable supply voltage 10...30 VDC
    Power consumption max 0.7 W
    Operating temperature ambient: -20...+80 °C
    medium: -20...+100 °C
    Ambient atmospheric pressure 84...106.7 kPa
    Relative humidity max 90%
    Ingress protection IP65 (connector)
    Average life-time 10 years
  • Connection diagram of the ELHART PTE5000C pressure transmitter

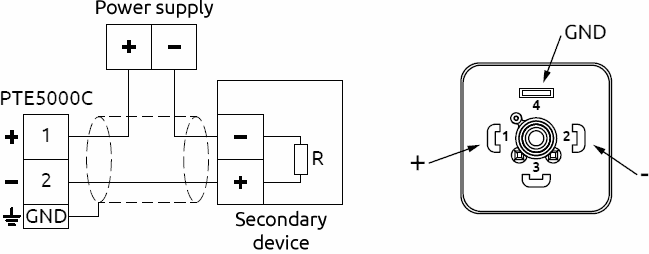

    PTE5000C connection diagram
    Connection diagram of the ELHART PTE5000C series pressure transmitter
  • Dimensions of the ELHART PTE5000C pressure transmitter
    Overall dimensions of PTE5000C, detachable connection
    Composition and overall dimensions of the ELHART PTE5000C series pressure transmitter, mm
    Components Material
    1. Housing Stainless steel AISI 304
    2. Sensing element Ceramics Al2O3
    3. Inner O-ring Viton (FKM)
    4. External O-ring Viton (FKM)
    5. Connector Plastic
    6. Connector seal NBR
