PTE1000M series pressure transmitters feature an open flush diaphragm made of AISI 316L stainless steel. They are designed to convert the gauge pressure of thick, viscous, dirty media, slurries containing suspensions of dispersed particles, adhesive and colloidal solutions. The design of sensing element does not have deep cavities and channels. This allows the sensor to be easily cleaned of adhering residues by rinsing it in cleaning fluids.
Applications: sugar, brewing, oil refineries; sewage treatment stations, waste disposal systems, mining and processing of minerals, boiler stations, public utilities, food production, pulp and paper mills.
| Parameter | Value |
|---|---|
| Type of pressure being measured | redundant |
| Upper limit of pressure measurement ULM (depends on ordering code) | 0.25...16 bar |
| Allowable overload (up to 30 min) | max 200% of ULM |
| Basic error limit (depends on ordering code) | ±0.2%, ±0.25%, ±0.35%, ±0.5% FS |
| Additional temperature error for every 10 °C from 23 °C | ±0.2% |
| Allowable supply voltage | 10...30 VDC |
| Power consumption | max 0.7 W |
| Analog output signal | 4...20 mA |
| Maximum current output load | no more than 800 Ω at 24 VDC or 200 Ω at 12 VDC |
| Output signal scale adjustment | 3.7...4.8 mA at zero point 19.2...20.8 mA at upper limit |
| Analog output protection | reverse polarity protection, overvoltage protection |
| Degree of protection from external influences | IP65 |
| Operating temperature | ambient: −20...+80 °С medium: −20...+100 °С |
| Ambient atmospheric pressure | 84...106.7 kPa |
| Ambient relative humidity | max 95% (non-condensing) |
| Electrical connection | DIN43650 connector |

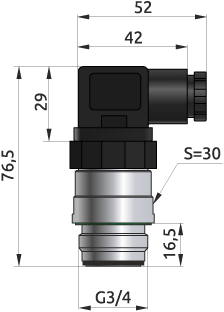

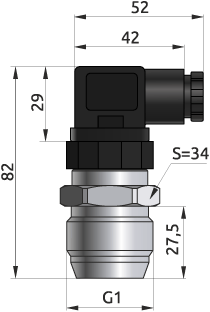

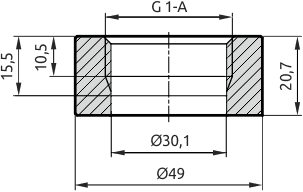

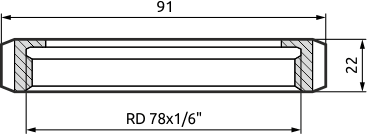

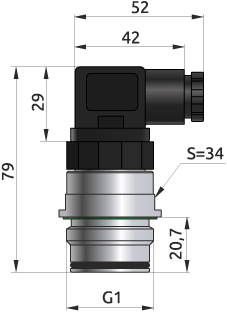

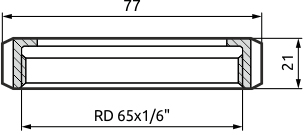

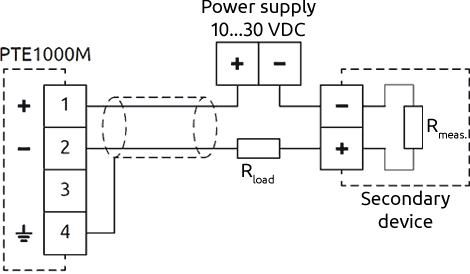

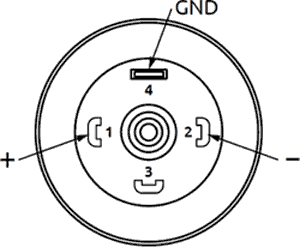

An external load resistor Rload is required for connection. Guidelines for selecting the resistor are detailed in the transmitter operating manual.
