Electromagnetic point level switch ELS-G12-M5-RS

Electromagnetic point level switch ELS-G12-M5-RS

The ELS electromagnetic point (High-Frequency) level switch is designed to detect the presence of the medium at its installation point through direct contact with the sensing element.
The sensor can be installed:
   — in metal tanks for level detection,
   — on pipes for pump dry-run protection.

A hygienic process connection with a conical seal makes the device suitable for food and pharmaceutical applications.

Modifications Where to buy?

ELS-G12-M5-RS
ELS-G12-M5-RS
  • Process connection: E-G12 (G12)
  • Electrical connection: M12 5-pin connector (M5)
  • Options: RS-485 (Modbus RTU) (RS)
  • Features of the ELS point level switches
    • Advanced signal processing ensures stable operation even with challenging media, such as alkaline and acid solutions, liquid soap, and surfactants.
    • Automatic temperature compensation guarantees operational stability across the entire temperature range.
    • CIP/SIP compatible — the sensor can be cleaned at temperatures up to +120 °C for 1 hour.
    • Integration with ELHART Configurator simplifies commissioning, calibration, parameter transfer, and backup.
    • Full parameter configuration via the RS-485 (Modbus RTU) digital interface: setpoint, hysteresis, operating mode, and output type.
    • Real-time diagnostics: ability to read the current signal response to monitor sensor condition and adjust settings without removal.
    • Hygienic process connection without extra seals when using WA.22 or WA.24 adapters.
    • Fully encapsulated electronics protect against condensation and improve vibration resistance. Ingress protection is IP66/IP67.
    • Compact housing for installation in tanks or pipes with limited space.
    • Flexible output configuration: default state NO (normally open) or NC (normally closed); output type PNP, NPN, or Push-Pull.
  • Technical characteristics of the ELS point level switches
    Parameter Value
    Supply voltage 10…30 VDC
    Power consumption max 1 W
    Digital output type PNP / NPN / Push-Pull (configurable)
    Output function NO / NC (configurable)
    Response time min 0.4 s
    Load current max 200 mA
    Short-circuit protection yes
    Process connection EE-G12 (with G1/2″ thread)
    Medium pressure -1…20 bar
    (when using WA.22 or WA.24)
    Medium temperature -20 до +110 °C
    (+120 °C for 1 hour)
    Ambient temperature -20 до +80 °C
    Operating relative humidity 0...100%
    (condensation permitted)
    Ingress protection IP66 / IP67
    (when using a connector with the same IP rating)
    Wetted probe material AISI 316L stainless steel, PEEK
    Communication interface and protocol RS-485, Modbus RTU
  • Connection diagrams of the ELS point level switches

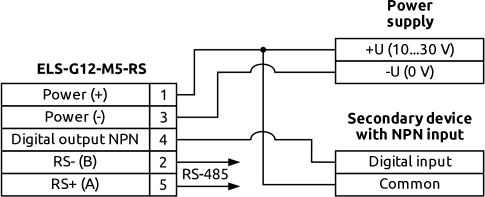

    Connection diagram of the level switch to an external device with an NPN input
    Connection diagram of the level switch to an external device with an NPN input

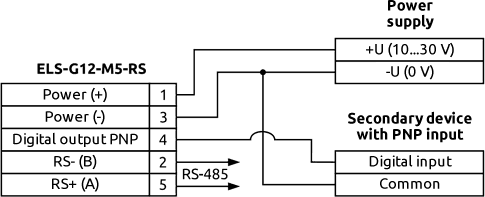

    Connection diagram of the level switch to an external device with a PNP input
    Connection diagram of the level switch to an external device with a PNP input

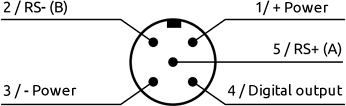

    Pin diagram of the level switch M12 connector
    Pin diagram of the level switch M12 connector
  • Overall dimensions of the ELS point level switches

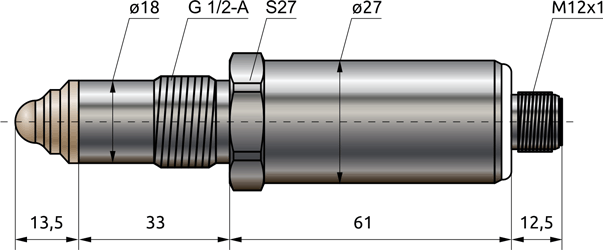

    Overall dimensions of the ELS-G12-M5-RS point level switch, mm
    Overall dimensions of the ELS-G12-M5-RS point level switch, mm
