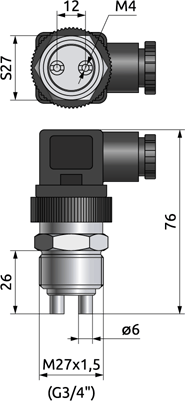

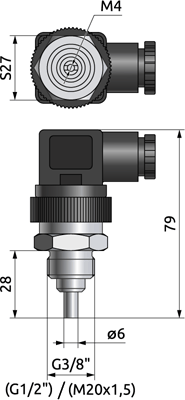

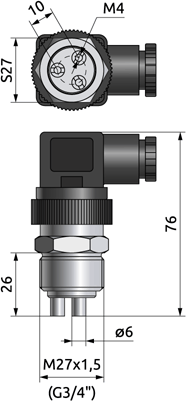

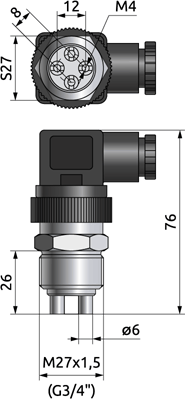

The CLS.H01 series rod-type conductive level probes are designed to monitor the level of electrically conductive liquid media in pipelines and in pressurized and non-pressurized tanks. To simplify on-site installation, the probes are manufactured with the capability to simultaneously install one, two, three or four rods. The maximum number of rods connected to the probe is specified in the ordering code. For easy signal wires connection, the probes are equipped with a DIN 43650 terminal head.
| Parameter | Value |
|---|---|
| Operating temperature of the monitored liquid | -20...+120 °C |
| Ambient operating temperature | -20...+80 °C |
| Ambient relative humidity | max 90% |
| Operating pressure | max 6 bar |
| Process connection | G3/8”, G1/2” or M20x1.5 (single-rod) G3/4” or M27x1.5 (two, three and four-rod) |
| Number of connected rods | 1, 2, 3 or 4 |
| Ingress protection | IP65 |
| Insulator material | PTFE (Teflon) |
| Electrode holder material | stainless steel AISI 304 |
| Rods and rod connectors material | stainless steel AISI 304 |

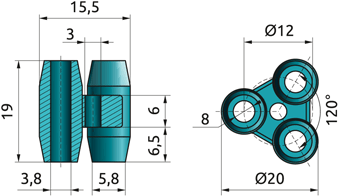

| Rod separators material | PTFE (Teflon) |
| Terminal head | DIN 43650 connector |
| Average service life | at least 10 years |
