PID temperature controller ECD110

PID temperature controller ECD110

ECD110 is a series of single-channel PID controllers in a compact panel-mounted housing 48×48 mm, designed for precise temperature control using the PID control algorithm. The controller is equipped with a universal temperature input for different types of thermocouples (TCs) and resistance temperature detectors (RTDs), and also with two outputs.

Modifications Where to buy?

ПИД-регулятор температуры ECD110-S-TR
ECD110-S-TR
  • Design: size SL (48×96 mm)
  • Inputs: 1×universal
  • Outputs: 1×pulse (T), 1×relay (R)
  • Communication interface: -
  • Functional diagram of ECD110 PID temperature controller

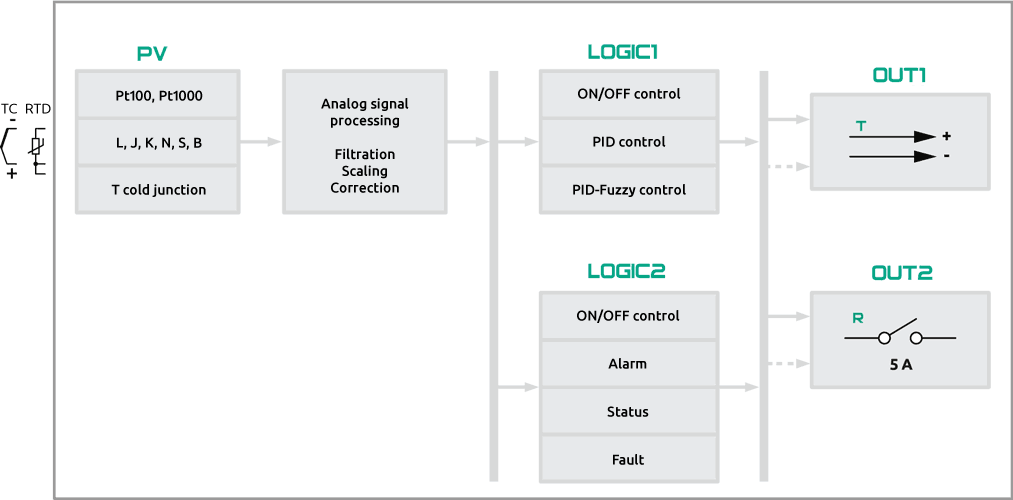

    Functional diagram of ECD110 series PID temperature controller
    Functional diagram of ECD110 series PID temperature controller
  • Features of ECD110 Series PID Controller
    • Panel-mount design: 48×48 mm.
    • Temperature measurement using common industrial temperature sensors:
      • RTDs: Pt100, Pt1000;
      • TCs: L, J, K, N, S, B.
    • Measurement accuracy: ±0.25%.
    • Measurement offset settings.
    • Three temperature control modes:
      • ON/OFF (two-position) control ("Heating" or "Cooling");
      • PIDPID control ("Heating" or "Cooling");
      • PID Fuzzy control ("Heating" or "Cooling").
    • AutoAuto-tuning of PID (PID Fuzzy) coefficients using three methods for various processes.
    • Selectable control output: SSR or EM relay.
    • Configurable auxiliary output:
      • second stage of ON/OFF controller;
      • alarm: 8 operating modes;
      • operating status: control process is active or inactive;
      • fault: enabled in case of any emergency.
    • One-stage or two-stage control in ON/OFF (two-position) mode.
    • Wide operating temperature range: -20 to +50 °C.
    • Output latching (ON or OFF state) with manual reset.
    • Setpoint limit configuration.
    • Password protection for settings.
  • Technical characteristics of ECD110 series temperature controller
    Parameter Value
    Supply voltage 220 VAC
    Allowable supply voltage range 190…240 VAC
    AC frequency 50 Hz
    Power consumption 3 W
    Number of measurement and control channels 1 measurement and 2 control channels
    Measuring input RTDs: Pt100, Pt1000
    TCs: L, J, K, N, S, B
    Basic reduced error limit RTD (Pt100, Pt1000): ±0.25% of span
    TC *: ±0.25% of span
    Ambient temperature coefficient error max ±0.1% / 10 °C relative to (+20±5) °C
    Cold junction measurement accuracy ±2 °С
    Wire resistance compensation for RTD max 15 Ω
    Input polling time 0.3 s
    Control mode LU1: ON/OFF (two-position), PID, PID Fuzzy
    LU2: ON/OFF (two-position), Alarm, Status, Fault
    Output type type R: EM relay (NO+NC; 5 A at 250 VAC, load category AC-1; 3 A at 30 VDC, load category DC-1)
    type T: SSR output (pulse output) for external solid-state relay control 12 VDC (max 30 mA)
    PWM period 1…9999 s
    Environmental conditions for operation and storage
    Ambient temperature -20…+50 °С
    Relative air humidity max 80% (without condensation)
    Mounting method panel cutout 45×45 mm (±0.5)
    Conductor cross-section 2.5 mm²
    Weight max 220 g
    Ingress Protection IP54 (front side)
    IP20 (housing) according to GOST 14254

    * - without cold junction temperature compensation.

  • Connection diagram of ECD110 controller

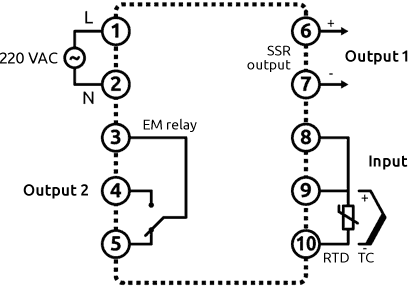

    Connection diagram of ECD110-S-TR controller
    Connection diagram of ECD110-S-TR controller
  • Overall dimensions of ECD110 controller

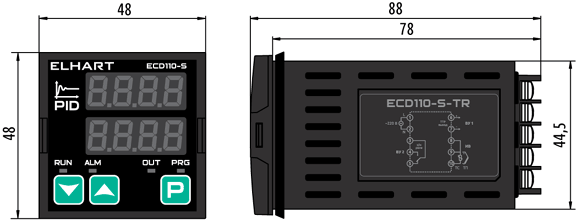

    Overall dimensions of ECD110-S-TR controller, mm
    Overall dimensions of ECD110-S-TR controller, mm
