Universal DIN-rail PID controller ECD1 is designed for temperature measurement using resistance temperature detectors (RTDs) and thermocouples (TCs) according to GOST 6651-2009 and GOST R 8.585-2001. It also measures standard current and voltage signals, and regulates various process parameters using ON/OFF (two-position), P, PI, or PID control modes.

Modifications Where to buy?

The PID meter is a controller ECD1-D2-R-RS
ECD1-D2-R-RS
  • DIN-rail mount design: size D2 (90.2×36.3 mm)
  • Input: 1×universal
  • Outputs: 1×relay, 1×alarm relay
  • Communication interface: RS-485 (ModBUS)
The PID meter is a controller ECD1-D2-T-D
ECD1-D2-T-D
  • DIN-rail mount design: size D2 (90.2×36.3 mm)
  • Inputs: 1×universal, 1×digital
  • Outputs: 1×pulse, 1×alarm relay
  • Communication interface: -
The PID meter is a controller ECD1-D2-R-D
ECD1-D2-R-D
  • DIN-rail mount design: size D2 (90.2×36.3 mm)
  • Inputs: 1×universal, 1×digital
  • Outputs: 1×relay, 1×alarm relay
  • Communication interface: -
The PID meter is a controller ECD1-D2-T-RS
ECD1-D2-T-RS
  • DIN-rail mount design: size D2 (90.2×36.3 mm)
  • Input: 1×universal
  • Outputs: 1×pulse, 1×alarm relay
  • Communication interface: RS-485 (ModBUS)
  • Functional diagram of ECD1 series universal PID controller
    Functional diagram of ECD1 series universal PID controller
    Functional diagram of ECD1 series universal PID controller
  • Features of ECD1 series universal PID controller
    • Depending on the modification, the control output can be an EM relay or SSR output for controlling single-phase and three-phase solid-state relays with a 3…32 VDC control signal.
    • The auxiliary relay output can be used as alarm when the controlled parameter has exceeded limits, or to implement two-stage control.
    • The compact housing allows installing ECD1 controllers in boxes, switchboards, and automation cabinets on a standard 35 mm DIN-rail.
    • Built-in RS-485 interface with Modbus-RTU protocol (for ECD1-D2-x-RS modification) allows using the controller with PLCs and HMIs as an external PID controller with auto-tuning. It can also be used as an I/O module with one universal analog input and two digital outputs.
    • The digital input (for ECD1-D2-x-D modification) can be used for remote start, stop, pause, second setpoint activation, anti-windup function activation, output latch reset, or manual mode select.
    • ECD1 PID controller has flexible display settings and access levels for operator parameters.
    • Supports N-type thermocouples.
    • Operating modes of LU2:
      • Monitoring LU1 status;
      • Monitoring device alarm;
      • ON/OFF (two-position) control with a setpoint dependent on LU1.
    • Output latching (OFF state).
    • Safe state activation for outputs if RS-485 communication is lost.
    • Write protection for EEPROM memory when changing parameters via RS-485.
    • Incremental setpoint shift mode for modifications with a digital input.
  • Technical characteristics of ECD1 series universal PID controller
    Parameter Value
    Supply voltage 90…240 VAC, 50 Hz (Nominal: 220 VAC, 50 Hz)
    Power consumption max 3.0 W
    Number of channels 1 measurement channel and 2 control channels
    Measuring input RTDs: Pt100, Pt1000
    TCs: L, J, K, S, B, N
    current: 0…20 mA, 4…20 mA
    voltage: 0…10 V
    Basic error limit RTD and analog signals: ±0.25% of span
    TC: ±0.25% of span (without cold junction temperature compensation)
    Cold junction measurement accuracy ±2 °С
    Input impedance current measurement (mA): 33 Ω
    voltage measurement (V): min 10 kΩ
    voltage measurement (mV): min 100 kΩ
    Wire resistance compensation for RTD max 15 Ω
    Input polling time RTD: 0.3 s
    TC, analog signals: 0.1 s
    Digital input signal types (option) "dry contact" (according to connection diagram)
    Control modes ON/OFF (two-position), PID, Alarm, Manual control, PID-Fuzzy
    Output types R type: EM relay (NO; 5 A at 250 VAC, 3 A at 30 VDC, resistive load)
    T type: pulse output for SSR control, 7 VDC (max 30 mA)
    PWM period (1…9999) s
    Environmental conditions for operation and storage
    Operating temperature (-20…+50) °С
    Storage temperature (-20…+50) °С
    Relative humidity (0…80)% (without condensation)
    Ingress Protection IP20
    Insulation category CATII (double insulation)
    Communication interface (option) RS-485, Modbus RTU

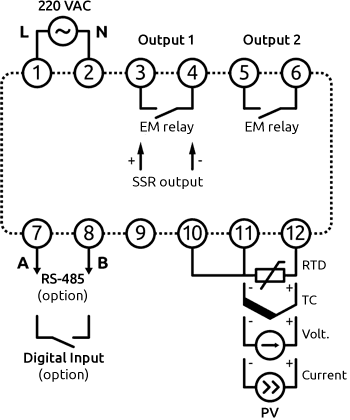

  • Connection diagram of ECD1 series universal PID controller
    Connection diagram of ECD1 series universal PID controller
    Connection diagram of ECD1 series universal PID controller

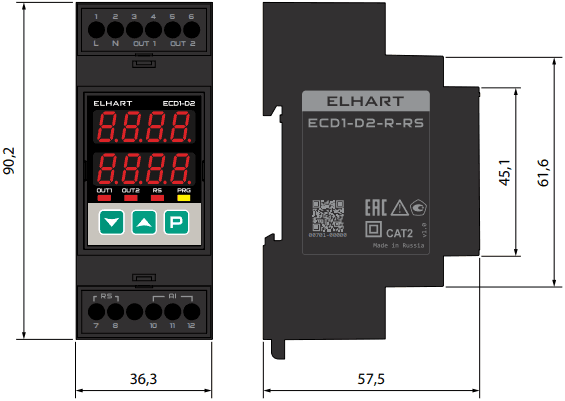

  • Overall dimensions of ECD1 series universal PID controller
    Overall dimensions of ECD1 series universal PID controller, mm
    Overall dimensions of ECD1 series universal PID controller, mm
