ECD100 single-channel controller is designed for temperature measurement and ON/OFF (two-position) control. It monitors the temperature within a set range, or beyond user-defined limits.
The controller operates with L, J, K, N, S, and B thermocouples (TCs) according to GOST R 8.585-2001 and with Pt100, and Pt1000 resistance temperature detectors (RTDs) according to GOST 6651-2009. Temperature measurement accuracy class is ±0.25%.

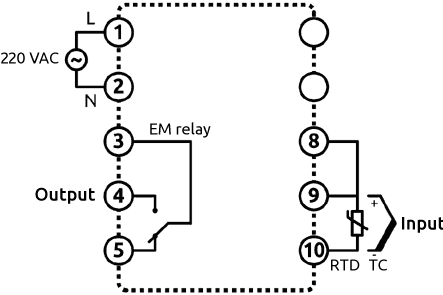

| Modification | ECD100-S-R (panel-mount) |

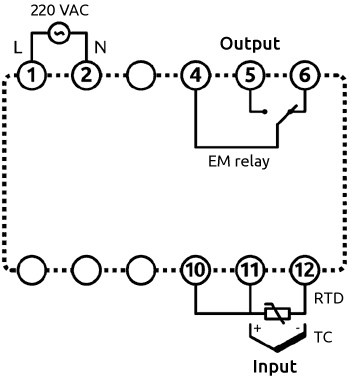

ECD100-D2-R (DIN-rail mount) |
|---|---|---|
| Number of measurement and control channels | 1 measurement and regulation channel | |
| Measuring input | RTDs: Pt100, Pt1000 TCs: L, J, K, N, S, B |
|
| Basic error limit | RTD (Pt100, Pt1000): ±0.25% of span TC *: ±0.25% of span |
|
| Ambient temperature coefficient error | max ±0.1% / 10 °C ** | |
| Cold junction measurement accuracy | ±2 °С | |
| Wire resistance compensation for RTD | max 15 Ω | |
| Input sampling time | 0.3 s | |

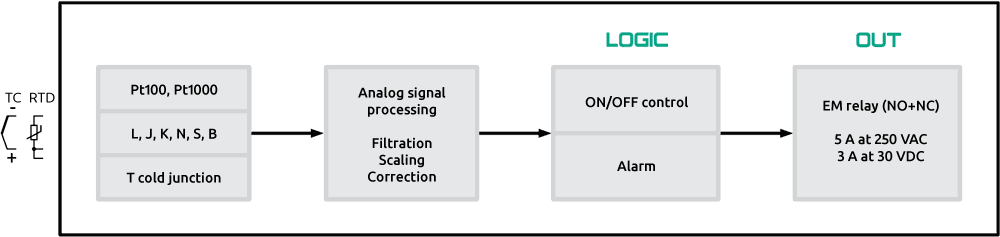

| Control method | ON/OFF (two-position), Alarm | |
| Output type | EM relay (NO+NC) 5 A at 250 VAC, 3 A at 30 VDC |
|
| Electrical characteristics | ||
| Supply voltage | 220 VAC | |
| Allowable supply voltage range | 190…240 VAC | |
| AC frequency | 50 Hz | |
| Power consumption | 3 W | |
| Environmental conditions for operation and storage | ||
| Ambient operating and storage temperature | -20…+50 °С | |
| Relative air humidity | max 80% (without condensation) | |
| Ingress Protection *** | IP54 (front panel) IP20 (housing) according to GOST 14254 |
IP20 |
| Mounting method | panel cutout 45×45 mm (±0.5) | DIN-rail |

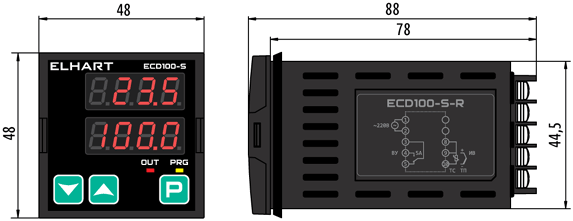

| Overall dimensions (W×H×D) | 48×48×88 mm | 36.5×90×57.5 mm |
| Conductor cross-section | 2.5 mm² | |
| Weight | max 220 g | |
* - without cold junction temperature compensation.
** - relative to (+20 ±5) °C.
*** - according to GOST 14254.
