The ELHART ELV-POOL controller is a dedicated solution designed for water level control in overflow swimming pools. It seamlessly fitting into the ELHART family of modular, DIN-rail mounted controllers.

Water level monitoring is precisely handled by 4 conductive probes, while the operational logic of the outputs is reliably determined by a built-in control algorithm.

Modifications Where to buy?

Water level regulator for swimming pools ELV-POOL-D2-R
ELV-POOL-D2-R
  • Design: size D2 (DIN-rail mount, 90.2×36.3 mm)
  • Inputs: 5×digital (4+1 COM)
  • Outputs: 3×relay

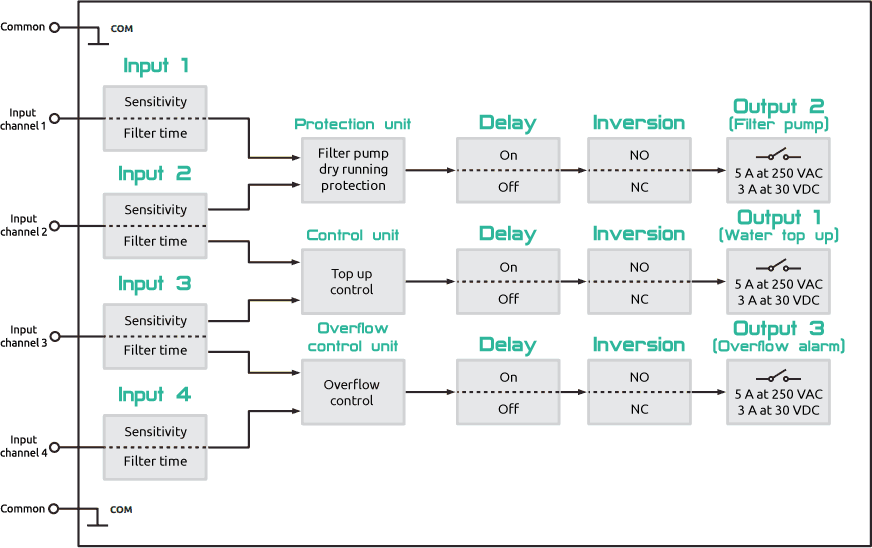

  • Functional diagram of the ELV-POOL water level controller
    Functional diagram of the ELV-POOL water level controller
    Functional diagram of the ELV-POOL water level controller
  • Features of the ELV-POOL overflow tank controller
    • 4 inputs + 1 common for different sensor types: conductive probes, float switches, dry contact, and NPN sensors (with external power supply).
    • AC electrode supply (2.5 VAC) to protect conductive probes from fouling and corrosion.
    • Fixed operating logic. In most cases, no additional setup is required.
    • Wide output on and off delay range: from 1 s to 999 min.
    • Relay logic can be inverted (NO/NC).
    • DIN-rail mounting: compact housing 36.3 mm wide.
  • Technical characteristics of the ELV-POOL water level controller
    Parameter Value
    Power supply
    Supply voltage 190…240 VAC / 50 Hz (Nominal: 220 VAC / 50 Hz)
    Power consumption 3 W
    Input channels
    Number of inputs 4 + 1 common
    Input type conductive probe,
    float switch,
    dry contact,
    NPN sensor (with external power supply)
    Adjustable sensitivity 5...500 kΩ
    Electrode voltage max 2.5 VAC at 25 Hz
    Electrode current max 0.02 mA
    Permissible supply voltage for NPN sensor max 30 VDC
    Output channels
    Number of outputs 3
    Output type SPST relay (NO)
    Max switching current and voltage 5 A at 250 VAC
    3 A at 30 VDC
    Environmental conditions
    Operating and storage temperature -20…+50 °C
    Relative humidity 0...80% (without condensation)
    Housing
    Overall dimensions (H×W×D) 90.2×36.3×57.5 mm
    Mounting DIN-rail
    Ingress Protection IP20
    Insulation category CATII (double insulation)
    Conductor cross-section max 2.5 mm²

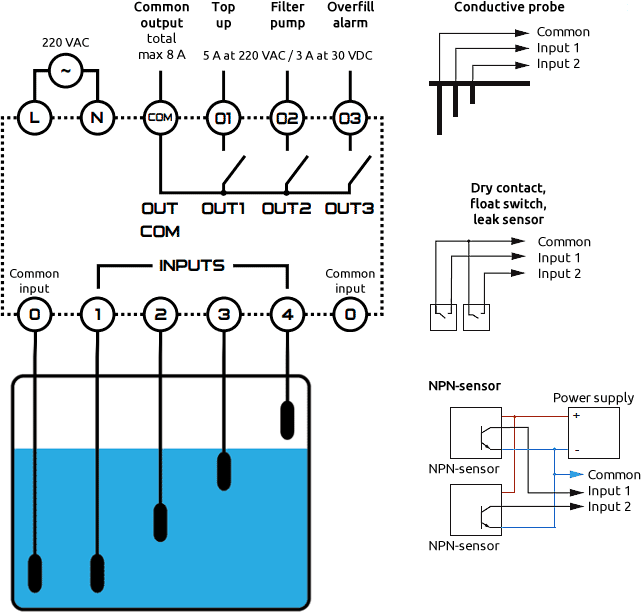

  • Connection diagram of the ELV-POOL water level controller for overflow pools
    Connection diagram of the ELV-POOL water level controller
    Connection diagram of the ELV-POOL water level controller

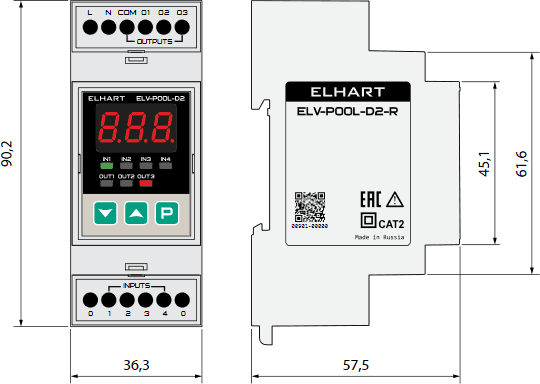

  • Overall dimensions of the ELV-POOL water level controller for overflow pools
    Overall dimensions of the ELV-POOL water level controller, mm
    Overall dimensions of the ELV-POOL water level controller, mm
