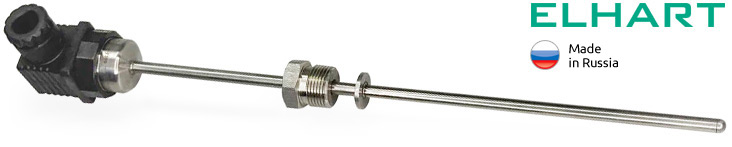

New: ELHART TRE.H12 temperature sensors with movable fitting
The warehouse range is supplemented with ELHART temperature sensors of the TRE.H12 series with a movable fitting, M20×1.5 or G½" connection and a mounting length from 60 to 800 mm.
The convenience of connection is provided by a quick-release DIN 43650 connector and a movable fitting with an M20×1.5 or G½" thread, which allows you to freely orient the cable gland during installation.
Key Features:
- Accuracy class: A (four-wire connection scheme) and B (three-wire connection scheme).
- Pt100 or Pt1000 sensor element.
- Temperature ranges: -30...+300 °C (Class A) or -50...+500 °C (Class B).
- Installation directly into the process in the boss WA.02 or through the protective sleeve PA.10.
- Universal application – suitable for HVAC systems, industrial technological processes, water supply and sanitation systems, heat exchangers, jacketed tanks and heating points with ambient temperatures from -50 to +500 °C.
- Available in stock.
TRE.H12 is the optimal choice for applications where accuracy, reliability, and ease of installation are important.
