Russian-made frequency converters for three-phase induction motors

Russian-made frequency converters for three-phase induction motors

The ELHART EMD-R10 series frequency converters are designed for three-phase induction motors. These devices control pumps, agitators, mixers, grinding machines, conveyors, and other process equipment.

The power range of this series is 0.7 to 11 kW, with 230 V or 400 V supply voltage.

The operating principle is based on converting 50 Hz mains AC voltage into three-phase voltage at a user-defined frequency (up to 100 Hz) while maintaining a constant V/f ratio. Adjusting the frequency and RMS voltage changes the speed of the rotating magnetic field and, as a result, regulates the motor shaft speed.

Modifications Where to buy?

ELHART EMD-R10-0007S
EMD-R10-0007S
  • Motor power: 0.7 kW
  • Supply voltage: 1-phase / 220 VAC
ELHART EMD-R10-0007T
EMD-R10-0007T
  • Motor power: 0.7 kW
  • Supply voltage: 3-phase / 380 VAC
ELHART EMD-R10-0015S
EMD-R10-0015S
  • Motor power: 1.5 kW
  • Supply voltage: 1-phase / 220 VAC
ELHART EMD-R10-0015T
EMD-R10-0015T
  • Motor power: 1.5 kW
  • Supply voltage: 3-phase / 380 VAC
ELHART EMD-R10-0022S
EMD-R10-0022S
  • Motor power: 2/2 kW
  • Supply voltage: 1-phase / 220 VAC
ELHART EMD-R10-0022T
EMD-R10-0022T
  • Motor power: 2.2 kW
  • Supply voltage: 3-phase / 380 VAC
ELHART EMD-R10-0037T
EMD-R10-0037T
  • Motor power: 3.7 kW
  • Supply voltage: 3-phase / 380 VAC
ELHART EMD-R10-0055T
EMD-R10-0055T
  • Motor power: 5.5 kW
  • Supply voltage: 3-phase / 380 VAC
ELHART EMD-R10-0075T
EMD-R10-0075T
  • Motor power: 7.5 kW
  • Supply voltage: 3-phase / 380 VAC
ELHART EMD-R10-0110T
EMD-R10-0110T
  • Motor power: 11 kW
  • Supply voltage: 3-phase / 380 VAC
  • Features of the EMD-R10 frequency converters
    • Fully developed and manufactured in Russia.
    • Available with or without a built-in PLC.
    • Built-in PID controller with application-specific functions.
    • Space vector PWM (SVPWM).
    • Built-in pulse counter (up to 300 Hz), timer (from 1 s to 999 min), 16-step program mode.
    • Extensive fault monitoring and logging.
    • Configurable delays and I/O logic.
    • Built-in brake chopper for connecting braking resistors when operating with inertial loads (modifications EMD-R10-0037T, -0055T, -0075T, and -0110T).
    • A large heatsink and a forced-air cooling fan ensure effective heat dissipation from the inverter power modules. This protects the VFD from overheating and extends its service life, even during frequent start/stop cycles or operation with high-inertia loads.
    • Fast and easy setup via ELHART Configurator. The software features a built-in network analyzer for data exchange control, and a monitoring module for visualization and charts.
  • Technical characteristics of the EMD-R10 series frequency converters
    Parameter Value
    Load type three-phase induction motor
    Power range 0.7…11 kW
    Supply voltage 170…240 VAC, 50/60 Hz (1-phase models)
    330…440 VAC, 50/60 Hz (3-phase models)
    Output voltage 0…230 VAC (1-phase models)
    0…400 VAC (3-phase models)
    Motor control method V/f control
    PWM type SVPWM (space vector, up to 10 kHz)
    Output frequency range 0…100.0 Hz
    Acceleration / deceleration time 0…100.0 s
    Overload capacity 150% for 60 s, 180% for 3 s
    Frequency setting resolution 0.1 Hz
    Digital inputs 4 multi-function DI (NPN)
    Analog input 1 universal AI: 0…10 V / 0…20 mA
    Digital outputs 2 relay outputs (NO/NC), 3 A / 250 VAC, 3 A / 30 VDC
    Communication interface RS-485, Modbus RTU (max baud rate 115,200 bit/s)
    Frequency setpoint source keypad, analog input, RS-485 interface, step program mode
    Ingress Protection IP20
    Ambient temperature 0…+50 °С (non-icing)
    Relative humidity max 95% (non-condensing)
    Built-in protection overcurrent, undervoltage, IGBT and rectifier overtemperature, motor fault (phase loss, phase unbalance)
    Built-in functions Alpha-X PLC for user algorithms, PID controller, timer, counter, step program mode
  • Connection diagrams of the EMD-R10 series frequency converters

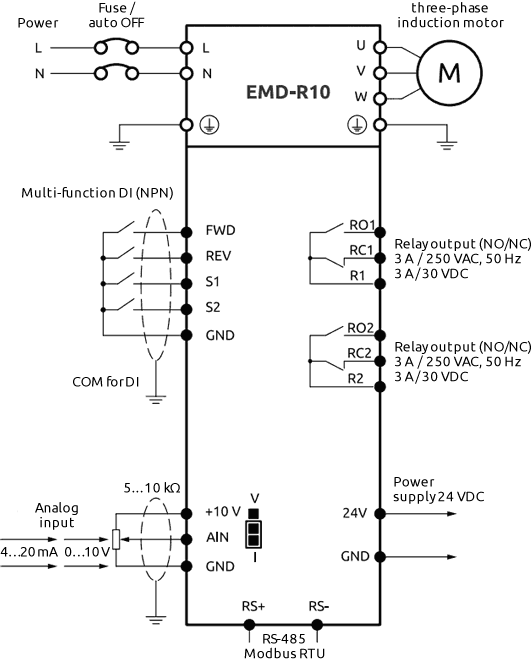

    Connection diagram for modifications EMD-R10-0007…0022
    Connection diagram for modifications EMD-R10-0007…0022
    Connection diagram for modifications EMD-R10-0037…0110
    Connection diagram for modifications EMD-R10-0037…0110
  • Overall dimensions of the EMD-R10 series frequency converters

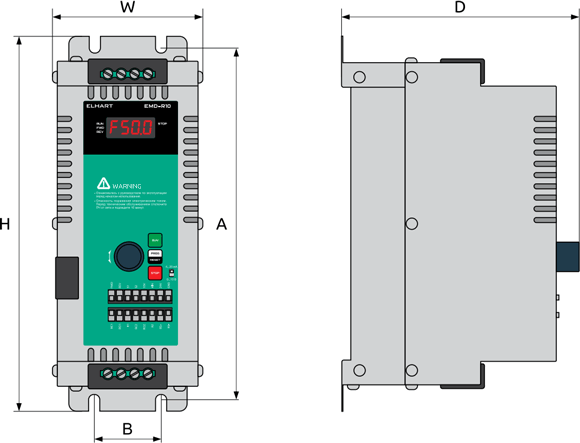

    Overall dimensions of the ELHART EMD-R10 series VFDs
    Overall dimensions of the ELHART EMD-R10 series VFDs
    Model Overall dimensions, mm
    A B W H D
    EMD-R10-0007S…0022S 219 38 85 234 124
    EMD-R10-0007T…0022T 219 38 85 234 130
    EMD-R10-0037T…0055T 235 58 106 250 135
    EMD-R10-0075T…0110T 287 58 106 302 135
